Zotac Will Display New Zbox Mini-PCs at CeBIT

Posted by at 10:31 am on March 21, 2017

Zotac will showcase two new Zbox mini-PCs with Intel’s 7th generation Kaby Lake processors and mobile versions of Nvidia’s 10-Series Pascal cards, as well as a few Zboxes that were previously announced during CES..

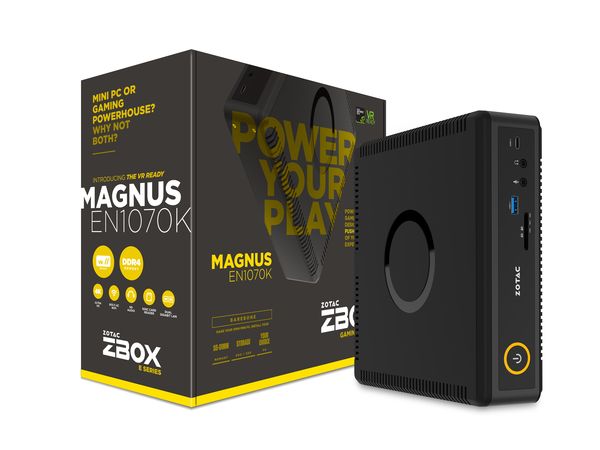

When Zotac revealed the Zbox Magnus EN1070K with a GeForce GTX 1070 during CES, we like it the look Now,Zotac has revealed the Magnus EN1060K and the Magnus EN1080K; as their names suggest, the EN1060K will feature a GTX 1060 whereas the EN1080K will contain a GTX 1080.

The Magnus Zboxes will have enough RAM capacity and I/O ports to handle your favorite VR headsets. It looks like the EN1060K and EN1070K will utilize the same 2.45-inch thick chassis. The heftier EN1080K is twice the height of the EN1060K/1070K, but the doubled thickness makes room for a water cooling solution.



Zbox Magnus EN1060K Zbox Magnus EN1060K Zbox Magnus EN1060K
Processor Intel Core i5-7500T Intel Core i5-7500T Intel Core i7-7700
Cooling Air Cooled Air Cooled Water Cooled
Graphics Nvidia GeForce GTX 1060 6GB GDDR5 Nvidia GeForce GTX 1070 8GB GDDR5 Nvidia GeForce GTX 1080 8GB GDDR5X
Memory 260-pin DDR4 2400/2133 SODIMM slots (up to 32GB) 260-pin DDR4 2400/2133 SODIMM slots (up to 32GB) 260-pin DDR4 2400/2133 SODIMM slots (up to 32GB)
Storage -M.2 PCIe x4/SATA SSD slot (2242/2260/2280)
-2.5-inch SATA 6 Gbps HDD/SSD slot
-M.2 PCIe x4/SATA SSD slot (2242/2260/2280)
-2.5-inch SATA 6 Gbps HDD/SSD slot
-M.2 PCIe x4/SATA SSD slot (2242/2260/2280)
-2.5-inch SATA 6 Gbps HDD/SSD slot
Display Outputs -HDMI 2.0 x 2
-DisplayPort 1.3 x 2
-HDMI 2.0 x 2
-DisplayPort 1.3 x 2
-HDMI 2.0 x 3
-DisplayPort 1.3 x 2
Audio Outputs -Onboard 8 Channel Digital Audio via HDMI
-Analog Stereo Output
-Onboard 8 Channel Digital Audio via HDMI
-Analog Stereo Output
-Onboard 8 Channel Digital Audio via HDMI
-Analog Stereo Output
Front Ports -Power Button
-3-in-1 card reader (SD/SDHC/SDXC)
-Headphone input
-Microphone input
-USB 3.1 Type-A
-USB 3.1 Type-C
-Power Button
-3-in-1 card reader (SD/SDHC/SDXC)
-Headphone input
-Microphone input
-USB 3.1 Type-A
-USB 3.1 Type-C
-Power Button
-3-in-1 card reader (SD/SDHC/SDXC)
-Headphone input
-Microphone input
-USB 3.1 Type-A
-USB 3.1 Type-C
Rear Ports -Power Connector
-USB 2.0 x 2
-USB 3.0 x 2
-10/100/1000 Ethernet x 2
-Wi-Fi Antenna Connector
-Power Connector
-USB 2.0 x 2
-USB 3.0 x 2
-10/100/1000 Ethernet x 2
-Wi-Fi Antenna Connector
-Power Connector
-USB 3.0 x 4
-10/100/1000 Ethernet x 2
-Wi-Fi Antenna Connector
Software Compatibility Microsoft Windows 8.1/10 (32-bit/64-bit) Microsoft Windows 8.1/10 (32-bit/64-bit) Microsoft Windows 8.1/10 (32-bit/64-bit)
Dimensions 8.27 x 7.99 x 2.45 inches (WxDxH) 8.27 x 7.99 x 2.45 inches (WxDxH) 8.86 x 1.99 x 5.04 inches (WxDxH)

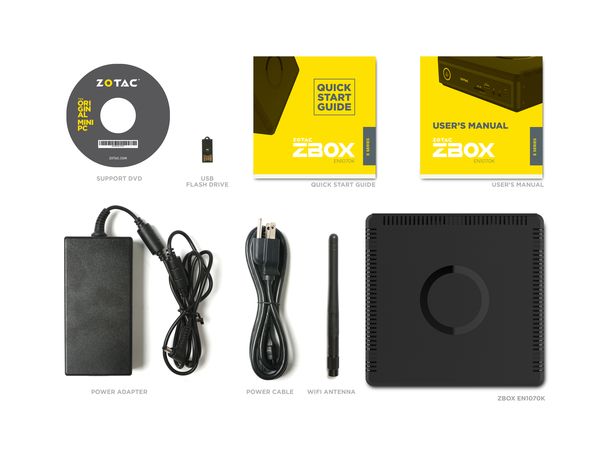

Accessories -Power Brick & Cable
-Wi-Fi Antenna
-USB Flash Drive w/ O/S Driver
-Driver Disc
-User Manual
-Quick Install Guide
-Power Brick & Cable
-Wi-Fi Antenna
-USB Flash Drive w/ O/S Driver
-Driver Disc
-User Manual
-Quick Install Guide
-Power Brick & Cable x 2
-Wi-Fi Antenna x 2
-USB Flash Drive w/ O/S Driver
-Driver Disc
-User Manual
-Quick Install Guide



C And M Series

Along with the two new Magnus systems, Zotac will also be showcasing a couple other Zboxes that were revealed during CES earlier this year. The major improvement over previous generation Zboxes is the inclusion of Thunderbolt 3. Unlike the Magnus Zboxes, the CI/MI549 Nanos also feature VESA mounts, which is ideal for creating your own all-in-one solution with existing monitors. The Zbox CI549 Nano will be cooled

To see more, you can visit Zotac’s CeBIT booth, which will be located at Stand C66 in Hall 17.

Zbox CI549 Nano Zbox MI549 Nano
Processor Intel Core i5-7300U Intel Core i5-7300U
Cooling Passively Cooled Air Cooled
Graphics Intel HD Graphics 620 Intel Core i5-7300U
Memory 260-pin DDR4 1866/2133 SODIMM slots (up to 32GB) 260-pin DDR4 1866/2133 SODIMM slots (up to 32GB)
Storage 2.5-inch SATA 6 Gbps HDD/SSD slot 2.5-inch SATA 6 Gbps HDD/SSD slot
Display Outputs -HDMI 2.0
-DisplayPort via Thunderbolt 3-to-DP adapter
-HDMI 2.0
-DisplayPort via Thunderbolt 3-to-DP adapter
Audio Outputs -Onboard 8 Channel Digital Audio via HDMI
-Analog Stereo In/Out
-Onboard 8 Channel Digital Audio via HDMI
-Analog Stereo In/Out
Front Ports -Power Button
-3-in-1 card reader (SD/SDHC/SDXC)
-Headphone input
-Microphone input
-USB 3.1 Type-C x 2
-USB 3.0
-Power Button
-3-in-1 card reader (SD/SDHC/SDXC)
-Headphone input
-Microphone input
-USB 3.1 Type-C x 2
-USB 3.0
Rear Ports -Wi-Fi Antenna connector
-Thunderbolt 3
-USB 3.0 x 3
-10/100/1000 Ethernet (RJ45)
-Power connector
-Wi-Fi Antenna connector
-Thunderbolt 3
-USB 3.0 x 3
-10/100/1000 Ethernet (RJ45)
-Power connector
Software Compatibility Microsoft Windows 10 64-bit Microsoft Windows 10 64-bit
Dimensions 5.76 x 4.98 x 2.38 inches (WxDxH) 5.03 x 4.98 x 2 inches (WxDxH)
Accessories -Power Brick & Cable
-VESA monitor mount w/ 4 screws
-Wi-Fi Antenna
-USB Flash Drive w/ O/S Driver and Support DVD
-Thunderbolt 3 to DisplayPort Adapter
-User Manual
-Quick Install Guide
-Power Brick & Cable
-VESA monitor mount w/ 4 screws
-Wi-Fi Antenna
-USB Flash Drive w/ O/S Driver and Support DVD
-Thunderbolt 3 to DisplayPort Adapter
-User Manual
-Quick Install Guide
