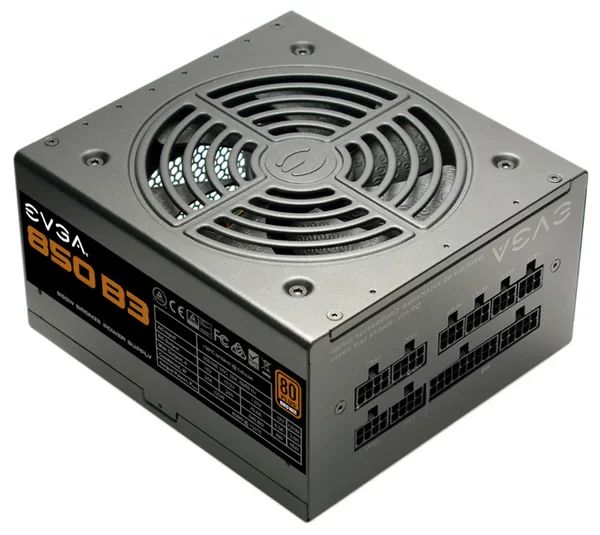

EVGA Debuts the Budget B3 Series PSUs

Posted by at 9:35 am on April 12, 2017

EVGA‘s new B3 PSUs have launched, featuring lots of upgrades compared to the previous B2 line, plus covering a wider wattage range. The OEM is again Super Flower, which is definitely an advantage because SF is highly respected .

The platform has been upgraded, and in addition to the fully modular cable design, EVGA also added a semi-passive mode, a Hydraulic Dynamic Bearing fan, and (according to EVGA), tighter load regulations (<2%). The 450W-650W units have 150mm depth, whereas the 750W and 850W models are 10mm longer. Efficiency remains at the same level–80 PLUS Bronze certified.

All new B3s use a modern platform, featuring an LLC converter on the primary side and DC-DC converters on the secondary side, for the generation of the minor rails. Given those high-end specs, this platform could easily achieve significantly higher efficiency levels, but EVGA wanted it to stay at the same levels as its previous PSU line so as to avoid creating internal competition.

The B3 line positioned between the GQ (FSP OEM) and BQ (HEC and Andyson OEMs) lines, and they’re backed by a five-year warranty.

B3
OEM Super Flower
Models 850 B3, 750 B3, 650 B3, 550 B3, 450 B3
Max. DC Output 850W – 450W
PFC Active PFC
Efficiency 80 Plus Bronze
Modular Yes (fully)
Intel C6/C7 Power State Support Yes
Operating temperature 0°C ~ 40°C
Protections Over Voltage Protection
Under Voltage Protection
Over Current Protection
Short Circuit Protection
Over Power Protection
Over Temperature Protection
Cooling 130mm Hydraulic Dynamic Bearing Fan
Semi-passive operation Yes (Selectable)
Number of PCIe 850 B3: 6
750 B3: 4
650 B3: 3
450 B3, 550 B3: 2
Number of EPS 1x for all B3 models
Dimensions 850 B3, 750 B3: 150 mm (W) x 85 mm (H) x 160 mm (D)
450 B3 – 650 B3: 150 mm (W) x 85 mm (H) x 150 mm (D)
Compliance ATX12V v2.4, EPS 2.92
+12V Max Output 850 B3: 70.8A (849.6W)
750 B3: 62.4A (748.8W)
650 B3: 54.1A (649.2W)
550 B3: 45.8A (549.6W)
450 B3: 37.4A (448.8W)
Price 850 B3: $99.99
750 B3: $89.99
650 B3: $69.99
550 B3: $59.99
450 B3: $49.99
Warranty 5 years
